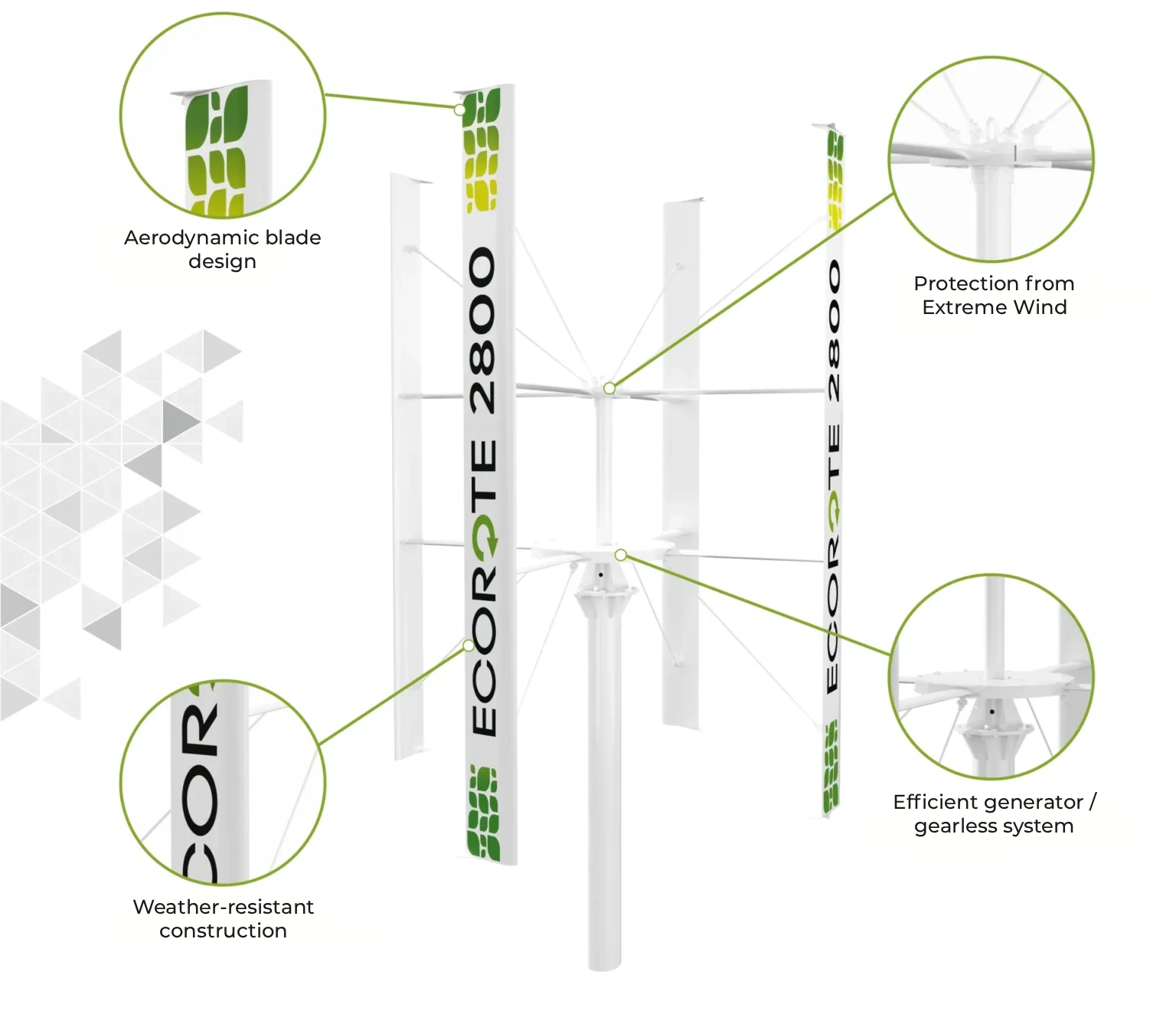

ECOROTE Wind Turbines

The ECOROTE line of wind turbines is our flagship product, designed for efficient, modern, and durable renewable energy generation. Our offer includes turbines with capacities ranging from 300W to 9800W. They were designed by our team of engineers and constructors in close cooperation with Rzeszów University of Technology – a leading research institution specializing in aviation and aerodynamics.

The materials used in production come 98% from Polish manufacturers, ensuring high quality and reliability of components.

  • Turbiny Ecorote
tło prawe

For whom?

ECOROTE turbines are the perfect solution for individuals and companies who want to:

For Whom ECOROTE

We design our solutions with the future in mind – to make green energy available everywhere and for everyone

What makes ECOROTE stand out?

Manufactured in Poland
Full quality control and fast service – everything from design to production in Poland.

Robust construction
Durable steel–aluminum turbines – no plastics or "garden toys."

Real efficiency
Parameters confirmed by tests – not just catalogue data.

Professional support
Consulting, spare parts, service – we are available at every stage.

Certificates and standards
Compliance with European requirements – safety and legality.

Flexibility
Customization of the turbine to your needs – voltage, control, integration.

Integrity
Reliable data, full documentation, and a transparent sales policy.

Turbine technical specifications

Turbine Parameter ECOROTE 300 ECOROTE 1000 ECOROTE 1500 ECOROTE 2800 ECOROTE 5000 ECOROTE 9800
Turbine Power 300Wp 1000Wp 1500Wp 2800Wp 5000Wp 9800Wp
Rotor Diameter [m] 1 1 2,2 2,2 2,9 4,3
Turbine Height [m] 1,2 2,17 1,5 3 4,2 5,6
Start-up Speed 2m/s 2m/s 1,5m/s 1,25m/s 1,25m/s 1,2m/s
Rated Speed 10m/s 12m/s
Grid Production Speed 3m/s
Total Weight 48 kg 52 kg 155 kg 185 kg 280 kg 970 kg
Blades and Arms Aluminum construction tested for extreme conditions
Brake Electromagnetic - The ECOROTE 9800 turbine also has a mechanical brake
Operating System Low-voltage 12/24/48VDC On-Grid/Hybrid
Controller Microprocessor
Inverter Output Voltage 24/48V DC 1x230V AC 50Hz/ 3x400V AC 50Hz 3x400V AC 50Hz
Generator Output Voltage AC
Noise Level (PN-EN 61400-11) <46dB at 8m/s at 60m
Operating Temperature -40°C to 70°C
Corrosion Protection Anodizing, galvanizing, paint coating
Mast Types Concrete/metal poles, rooftop bases
Custom Design Option
Mast Dimensions 2 to 25 m
Compliance CE, IEC 61400-2, 61400-11
tło lewe
ECOROTE Turbines description

Turbine parameters

Turbine 300W

Wind Speed
(m/s)
Power
(W)
RPM
0 0 0
1 0 46
2 0 92
3 0 137
4 9 183
5 26 229
6 51 275
7 89 321
8 137 366
9 210 412
10 292 458
11 397 504
12 539 550
13 699 595

Turbine 1000W

Wind Speed
(m/s)
Power
(W)
RPM
m/s W RPM
0 0 0
1 0 46
2 0 92
3 0 137
4 16 183
5 46 229
6 92 275
7 160 321
8 246 366
9 376 412
10 523 458
11 710 504
12 966 550
13 1252 595

Turbine 1500W

Wind Speed
(m/s)
Power
(W)
RPM
m/s W RPM
0 0 0
1 0 20
2 0 39
3 8 59
4 37 78
5 83 98
6 153 117
7 214 137
8 383 156
9 560 176
10 803 195
11 1073 215
12 1410 234
13 1835 250

Turbine 2800W

Wind Speed
(m/s)
Power
(W)
RPM
m/s W RPM
0 0 0
1 0 20
2 0 39
3 16 59
4 74 78
5 166 98
6 307 117
7 428 137
8 767 156
9 1120 176
10 1605 195
11 2147 215
12 2820 234
13 3440 250

Turbine 5000W

Wind Speed
(m/s)
Power
(W)
RPM
m/s W RPM
0 0 0
1 0 17
2 0 34
3 28 51
4 130 68
5 293 85
6 543 102
7 757 119
8 1356 136
9 1980 153
10 2838 170
11 3796 187
12 4987 203
13 6489 220

Turbine 9800W

Wind Speed
(m/s)
Power
(W)
RPM
m/s W RPM
0 0 0
1 0 10
2 0 20
3 57 30
4 270 40
5 605 50
6 1122 60
7 1565 70
8 2804 80
9 4094 90
10 5869 100
11 7849 110
12 10311 120
13 13418 130

General distributor

EMITER logo
ZUP EMITER Sp. z o.o.
POLAND

Other distributors

tło lewe

FAQ

Do I need to conduct wind measurements before installation?

 Yes, we recommend measuring wind conditions using a meteorological station installed at the target turbine height. Measurements should last 6–12 months to assess investment viability. Data is supported by:

  • Global Wind Atlas (wind speed via satellite data)
  • Meteoblue (wind direction)
  • Geoportal (terrain roughness)

Is my location suitable for a wind turbine installation?

Not every location is suitable. Key factors include:

  • Annual average wind speed and direction
  • Terrain roughness – no obstacles in the immediate vicinity
  • Terrain characteristics – valleys and buildings may cause turbulence Our company conducts individual energy analyses to ensure investment profitability.

What are the rules for placing multiple turbines?

Placement depends on the prevailing wind direction:

  • Perpendicular to wind direction: turbines should be spaced at least 2x the rotor diameter apart
  • Parallel to wind direction: spacing should be at least 6x the rotor diameter

What are the minimum distances from property boundaries?

The minimum distance is 4 meters from the property boundary, measured from the outermost point of the turbine (blade tip).

Do I need a building permit?

  • Yes: If the turbine is installed on a foundation permanently fixed to the ground.
  • No: If the turbine is mounted on a mast without a foundation or on a building’s roof and does not exceed 3 meters above the ridge.

Note: In the absence of a local spatial development plan, obtaining zoning conditions is required.

What are the turbine installation methods?

  • Embedded foundation: Permanently fixed to the ground (requires a permit)
  • Mast with guy wires or no foundation: Requires notification
  • Building roof: Up to 3 meters above the roof without notification; above that, notification or a permit is required

What operating systems can the ECOROTE turbine work with?

  • On-grid: Connected to the grid via an inverter, with surplus energy fed to the grid operator.
  • Off-grid: Supplies local loads (e.g., summer homes) without grid connection.
  • Hybrid: Works with PV systems and energy storage, offering backup or energy independence.

How do I register a turbine with the grid operator?

For grid-connected operation, a micro-installation registration is required:

  • Grid operator application form
  • Inverter and turbine certificates
  • Electrical installation diagram
  • Declaration of compliance with technical conditions and safety standards

What maintenance is required?

  • 9800W turbine: Mandatory annual technical inspection (cost: PLN 500 net + travel)
  • Other models: No regular inspections required, but periodic visual checks are recommended
  • After extreme weather (storms, gales): Inspection is mandatory for all models

What qualifications should an installer have?

  • SEP E and D certifications for electrical work and measurements
  • Construction qualifications for foundations and supporting structures
  • Knowledge of renewable energy micro-installation standards and regulations

Are ECOROTE turbines noisy?

ECOROTE turbines comply with the European PN-EN 61400-11 noise standard. The sound level at 60 meters does not exceed 48 dB – quieter than a normal conversation.

Can I install a turbine on a roof?

Yes, but only for models: 300W, 1000W, 1500W, 2800W, and 5000W.

The 9800W model is not recommended due to its weight (over 1900 kg) and structural load. Roof installations require proper separation from the building’s structure (e.g., rubber mats and spacers).

How does a wind turbine work, and what affects energy production?

While it may seem that a spinning turbine always generates energy, this is not entirely true. A wind turbine has a start-up speed (typically ~1 m/s) at which it begins to rotate. However, electricity production starts at the generating speed, usually around 3 m/s. Higher wind speeds result in greater turbine power output.

What sets ECOROTE turbines apart from competitors?

ECOROTE turbines are 100% Polish products with high reliability, durability (20–25 years), and minimal maintenance needs. Their simple design allows for self-installation, and the vertical-axis (VAWT) technology enables operation in challenging terrain conditions.

Which turbine should I choose for specific needs?

  • Households: 2800W to 5000W turbines are ideal
  • Businesses: 9800W model recommended
  • Small 12V/24V/48V systems (e.g., monitoring, garden lighting): 300W, 1000W models
  • Rooftop installations (including apartment buildings): 1500W, 2800W, 5000W – with proper structural separation

Can a turbine be installed on a prestressed concrete pole without a building permit?

Yes, it is possible with a notification, provided the investment is described as: “Installation of a prestressed concrete pole in the ground as a supporting structure for a renewable energy micro-installation.” It should be noted that the pole will support a micro wind turbine (below 50 kW), exempting it from the “wind turbine law.” Alternatively:

  • Describe as a “hybrid streetlight” powered by a small turbine and, e.g., a PV panel – ideal for parking lots, internal roads, or squares.
  • Describe as an “energy device” if part of technical infrastructure – also subject to notification only. In case of interpretive doubts, consult the local Architecture and Construction Department or obtain an urban planning opinion.

Downloadable materials

HIPAR Catalogue
